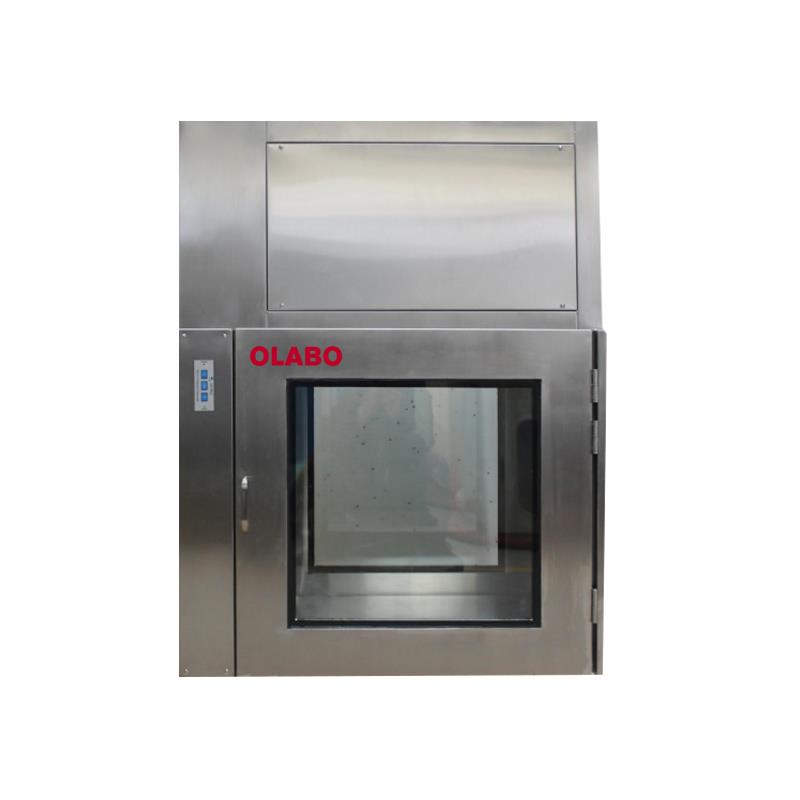

High Efficiency Pass Box
Product Description
The pass box is a kind of auxiliary equipment of the clean room. It is mainly used for the transfer of small items
between the clean area and the clean area, and between the clean area and the non-clean area, so as to reduce the
number of openings of the clean room and reduce the pollution of the clean room. Reduce to a lower level. The transfer
window is made of stainless steel plate, smooth and clean. The double doors are interlocked to effectively prevent
cross-contamination, and are equipped with electronic or mechanical interlocking devices.
Technical Parameters
Type
Air Shower Pass Box
Model
ASPB-01
ASPB-02
ASPB-03
External size
(W*D*H) mm
660*570*1000
760*670*1100
860*770*1200
Internal size
(W*D*H) mm
500*500*500
600*600*600
700*700*700
Material
304Stainless steel
Interlock
Electronical
UV Lamp
8W*1
15W*1
HEPA Filter
Efficiency≥99.999% at 0.3um
Clean air speed
0.36~0.54m/s
Gross Weight(Kg)
80
100
125
Packing Size(W*D*H)mm
780*690*1190
880*790*1290
980*890*1390
