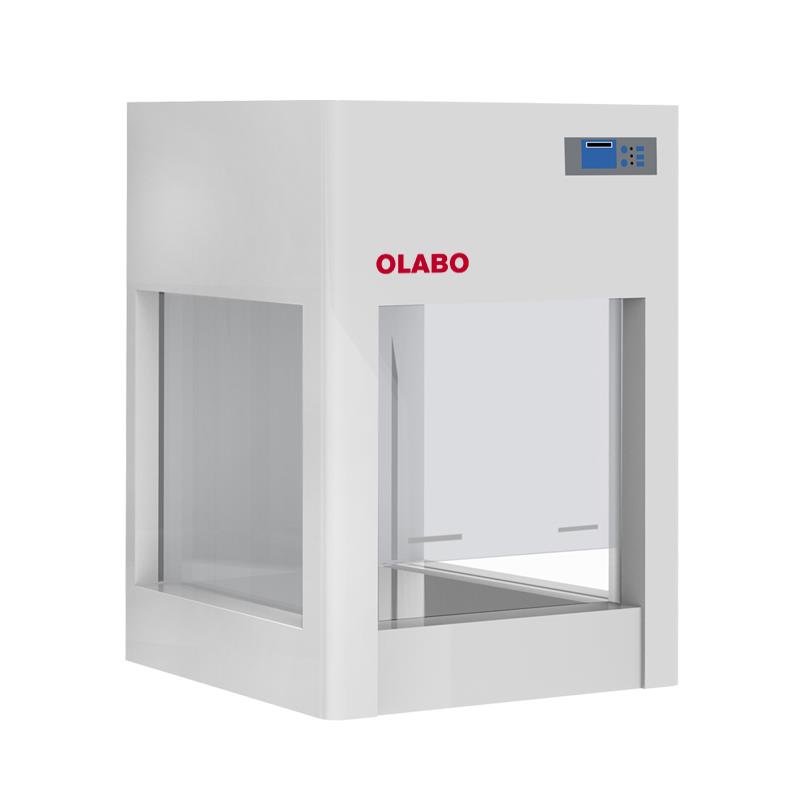

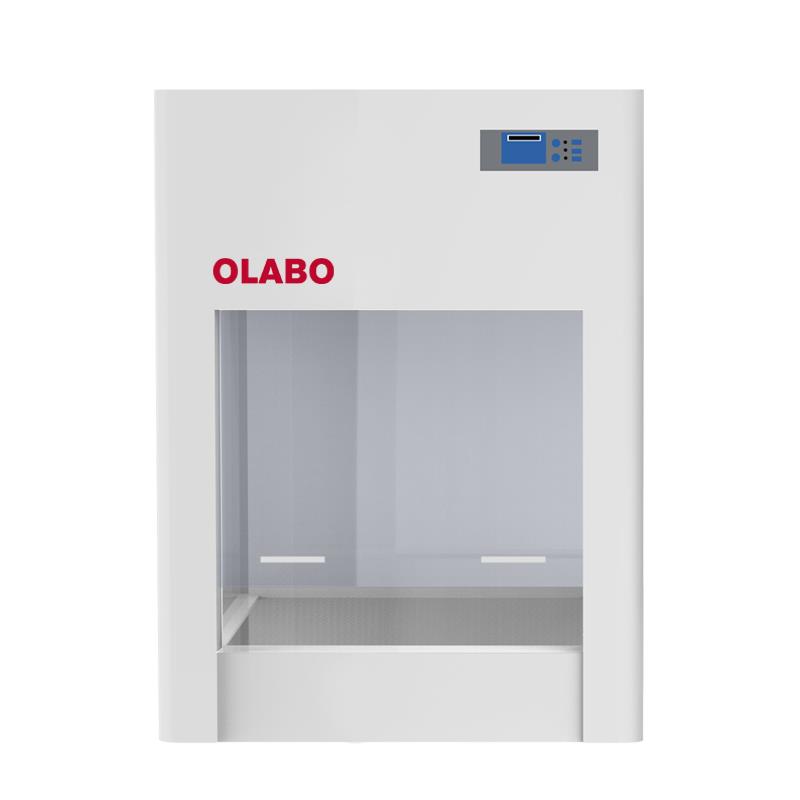

Laboratory equipment Tabletop Laminar Air Flow cabinet
Product Description
Product safety: the number of colonies ≤0.5CFU/30min
Filtration efficiency: The filters are all high efficiency filters without partitions, and the filtration efficiency
for particles with a diameter of 0.3μm is 99.999%;
The working area adopts four sides (left and right sides, rear, bottom) positive pressure to surround the
design working area to protect the product;
The box body is made of 1.2mm thick cold-rolled steel plate and the surface is electrostatic sprayed,
which enhances the structural strength and makes the whole device more stable;
The UV lamp is interlocked with the fan and fluorescent lamp, that is, when the fan and fluorescent lamp
are working, the ultraviolet lamp cannot be turned on to protect the operator.
Specification
External Sizes(L*D*H)
550*460*700mm
Internal Sizes(L*D*H)
480*340*370mm
Rated power
100 W
Air flow rate
0.3~0.5m/s
UV lamp power
8W
LED fluorescent lamp power
4W
Height of front window glass opening
300mm
Noise
≤65dB(A)
Fan model
Fanstar FH190 fan
Speed: 2630/2980 RPM
Flow rate: 540/600 m³/h
Power 42 W
