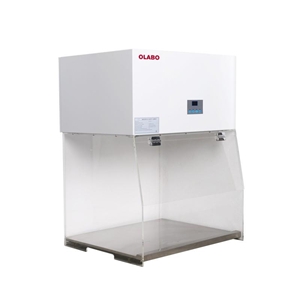

Stainless Steel Laminar Fow Cabinet
Product Description
1. Fume Hood does not protect the product from contamination because un-purified room air constantly enters into work area.
2. As a partical containment unit, the Fume Hood is suitable for work involving low to moderate risk agents where there is a need
for containment, but not for product protection.
3. Unlike conventional fume hood, the HEPA filter in the Fume Hood protects the environment by filtering air before it is exhausted.
4. With the negative pressure, personnel protection is made possible by constant movement of air into the work area.
Technical Parameters
Model
BYKG-II
External Size(W*D*H)
700*550*900mm
Internal Size(W*D*H)
680*540*500mm
HEPA Filter
99.999% efficiency at 0.3 μm
Airflow Velocity
0.75~1.0m/s
Noise
≤55dB
Illuminating Lamp
8W*1
LED Lamp
UV Lamp
20W*1
Emission of 253.7 nanometers for most efficient decontamination
Power Consumption
≤160W
Main Body Construction
PMMA
Work Table
304 stainless steel
Power Supply
AC220V±10% , 50/60Hz; 110V±10% ,60Hz
Standard Accessory
LED lamp, UV lamp*2
OptionalAccessory
Electric height adjustable base stand
Gross Weight
68kg
Package Size(W*D*H)
870*720*1170mm
