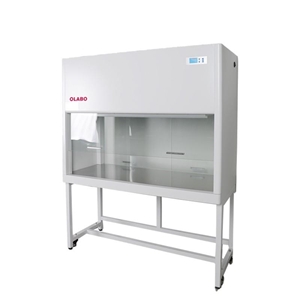

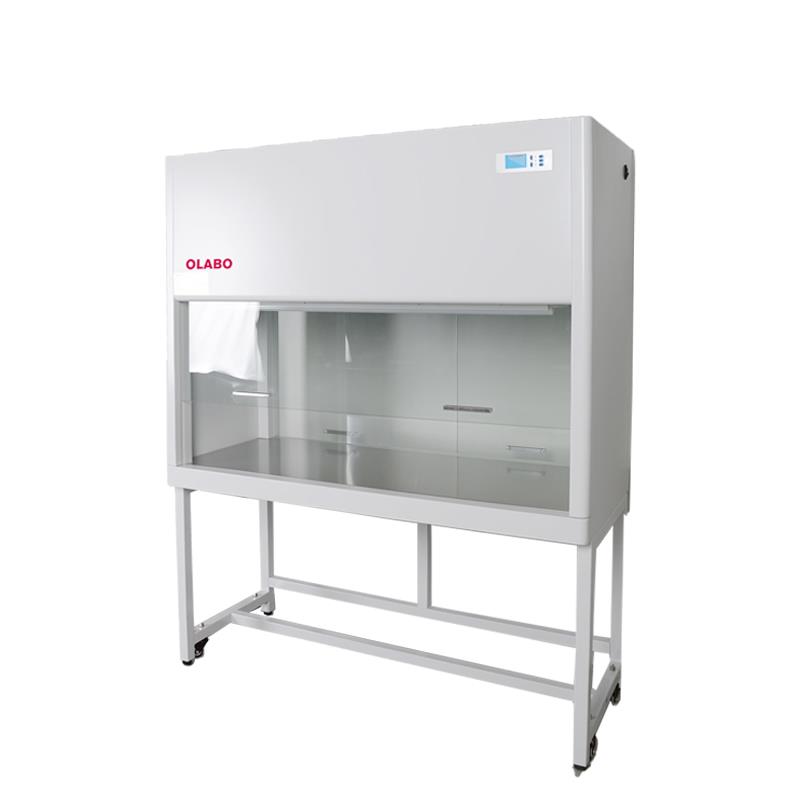

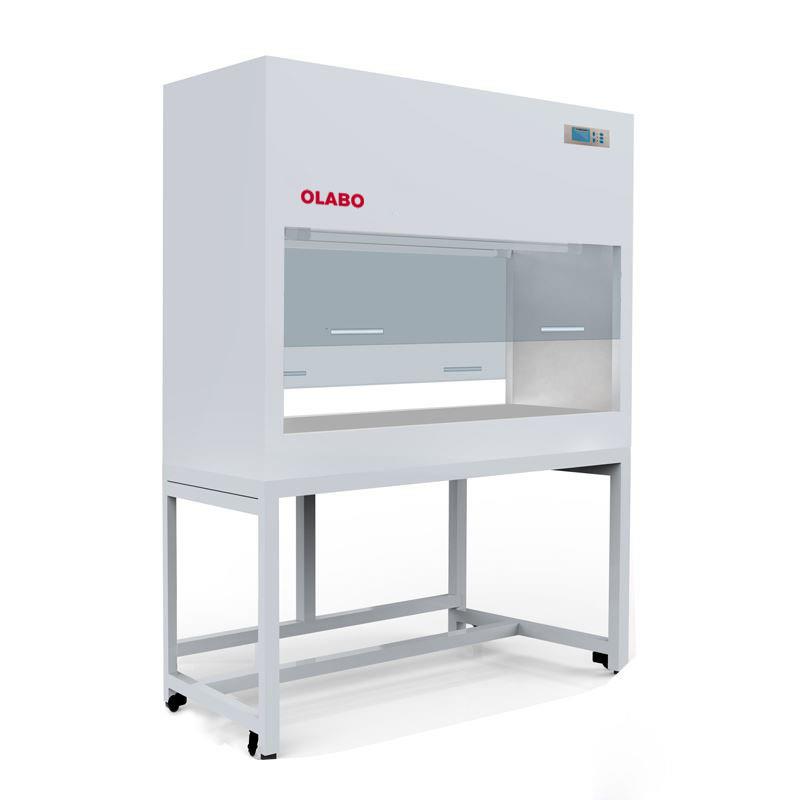

Vertical Laminar Flow Cabinet
Product Description
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it
across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to
prevent the infiltration of contaminated room air.
Technical Parameters
Model
BBS-SSC
External Sizes (L*D*H)
1440*660*1770mm
Internal Sizes (L*D*H)
1340*560*545mm
Rated Power
600W
Airflow Velocity
0.3～0.5m/s
UV Lamp Power
30W
LED Fluorescent Lamp Power
16W
Maximum Height of Front Window Glass Opening
310mm
Height from Table to Ground
750mm
Noise
≤65dB(A)
Product Safety
Number of colonies≤0.5CFU/30min
Filtration Efficiency
The filters are all high efficiency filters without partitions, with a filtration efficiency of 99.999% for particles with a diameter of 0.3μm
