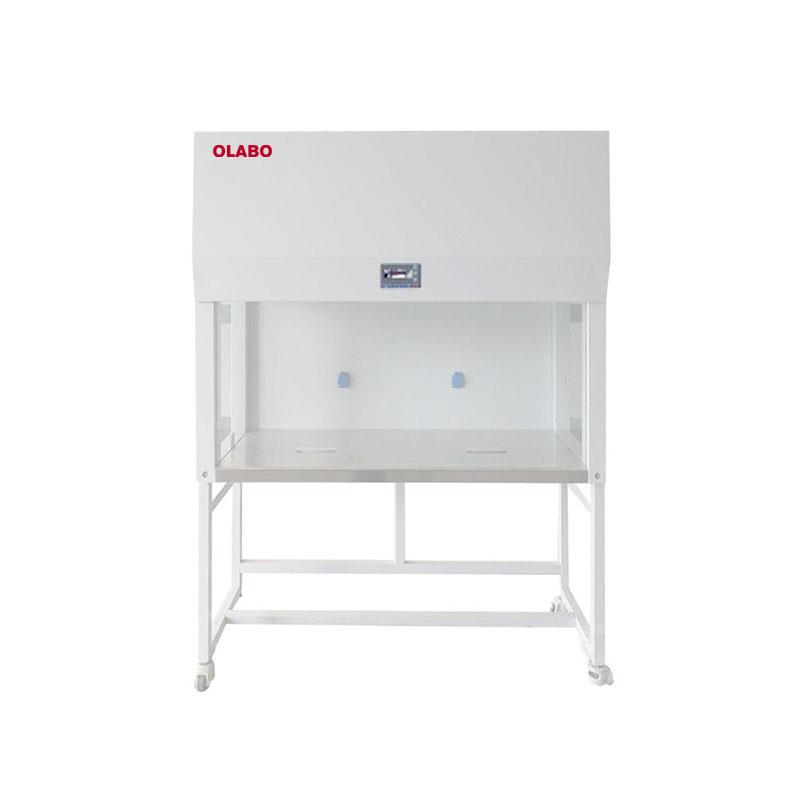

Laminar Flow Cabinet
Product Description
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it
across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to
prevent the infiltration of contaminated room air.
Technical Parameters
| Model | BBS-SDC |
| External Sizes (L*D*H) | 1460*620*1850mm |
| Internal Sizes (L*D*H) | 1338*530*650mm |
| Rated Power | 900 W |
| Airflow Velocity | 0.3～0.45m/s |
| UV Lamp Power | 40W |
| LED Fluorescent Lamp Power | 16W |
| Maximum Height of Front Window Glass Opening | 400mm |
| Height from Table to Ground | 750mm |
| Noise | ≤65dB(A) |
| Safe Operation Height of Front Window Glass Opening | 200-350mm |
| Product Safety | Number of colonies≤0.5CFU/30min |
| Filtration Efficiency | The filters are all high efficiency filters without partitions, with a filtration efficiency of 99.999% for particles with a diameter of 0.3μm |
