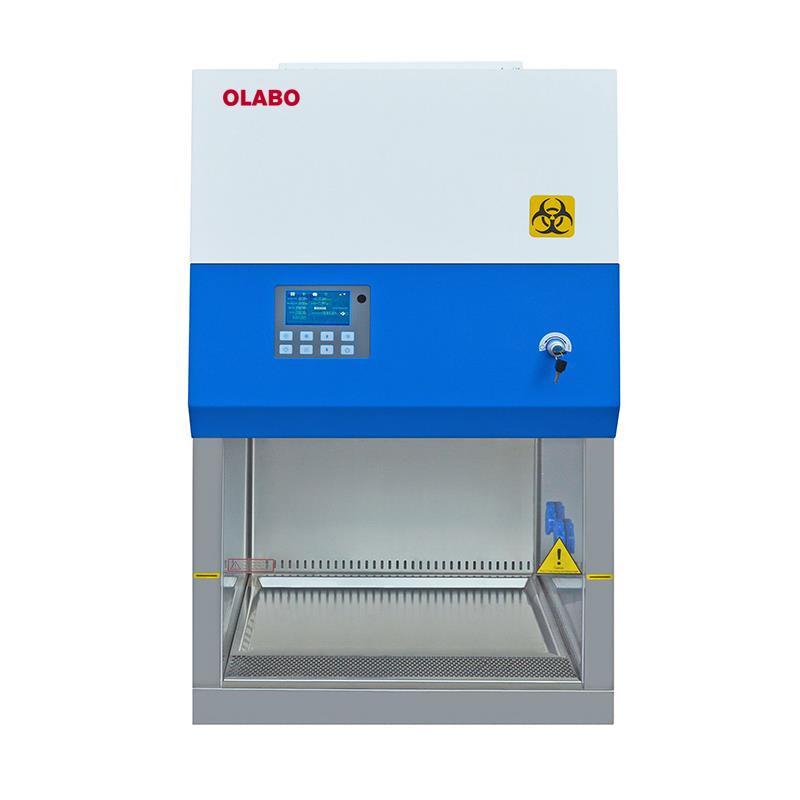

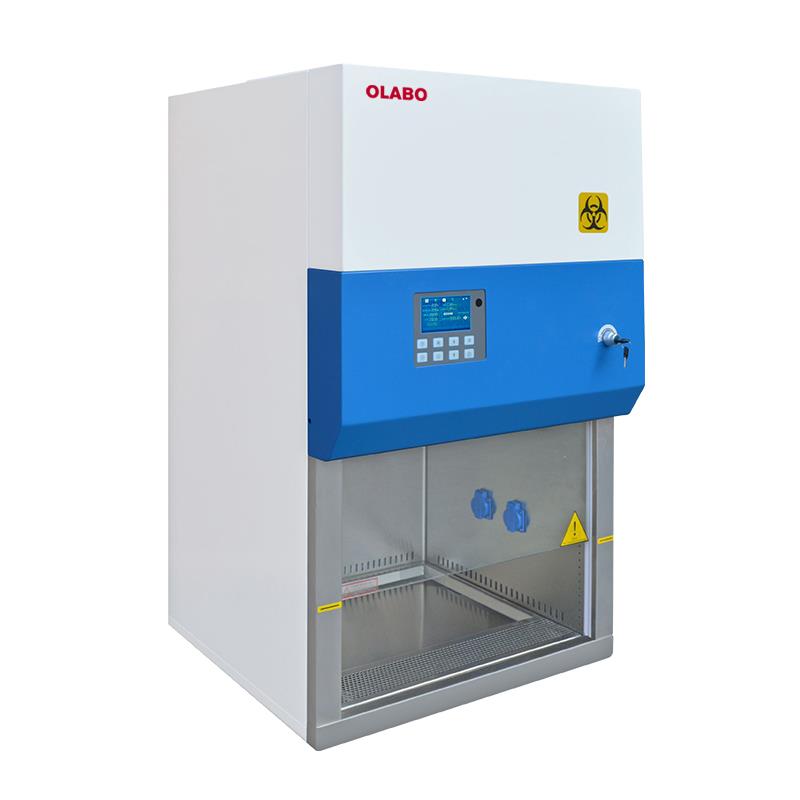

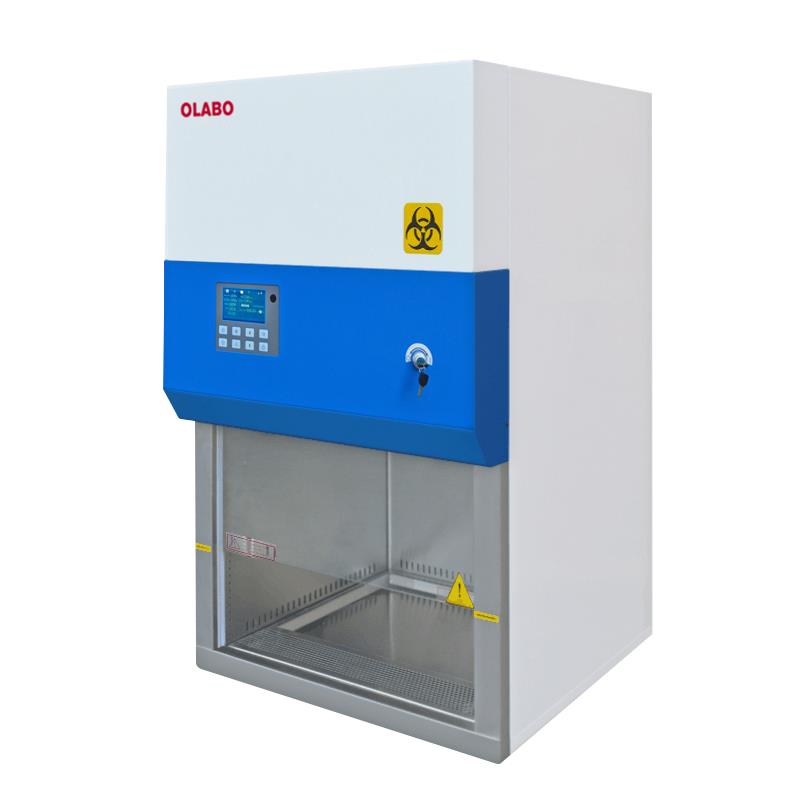

Biosafety Cabinet

Model

BBC-86

External Size

(W*D*H)

700*650*1230 mm

Internal Size

(W*D*H)

600*500*540mm

Tested Opening

Safety Height 200 mm（8’’）

Max Opening

370mm(15’’)

Inflow Velocity

0.53±0.025 m/s

Down flow Velocity

0.33±0.025 m/s

HEPA Filter

Two, 99.999% efficiency at 0.3μm. Filter life indicator.

Front Window

Motorized. Toughened glass . Anti UV.

Noise

EN1249 ≤ 58 dB / NSF49 ≤ 61dB

UV Lamp

30W*1

UV timer, UV life indicator, emission of 253.7 nanometers

for most efficient decontamination

LEDLamp

8W*2

Illumination

≥1000Lux

Consumption

500W

Sockets

Two, total load of two sockets: 500W

Display

LCD display

Control System

Microprocessor

Airflow System

70% air recirculation,30% air exhaust

Visual and AudioAlarm

Filter replacement, window over height, abnormal air flow velocity

Material

Work Zone: 304 stainless steel.

Main Body: Cold-rolled steel with anti-bacteria powder coating

Work Surface Height

750mm with optional base stand

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Standard Accessory

LEDlamp, UV lamp*2,Remote control, Waterproof sockets*2

Optional Accessory

Base stand, Universal caster with brake and leveling feet, SS Water tap*1, Gas tap*1

Gross Weight without Base Stand

Wooden Box:164kg                Carton:121kg

Gross Weight with Base Stand

Wooden Box:196kg

Package Size without

Base Stand(W*D*H)

Wooden Box: 860*800* 1450 mm    Carton:820*760*1430mm

Package Size with

Base Stand(W*D*H)

Wooden Box: 860*960* 1450 mm
