Product Description
Features:
1.LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.

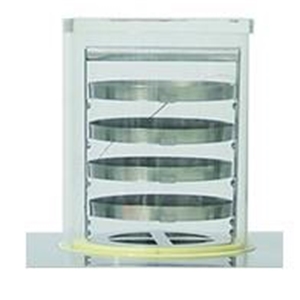

8. Drying chamber is transparent which is visual and safe.

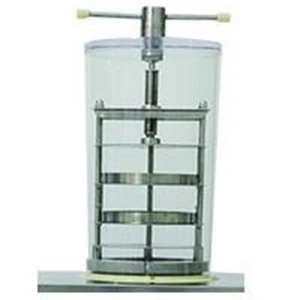

9. Shelves are stainless steel, which can be adjustable per the requirements.
Specification

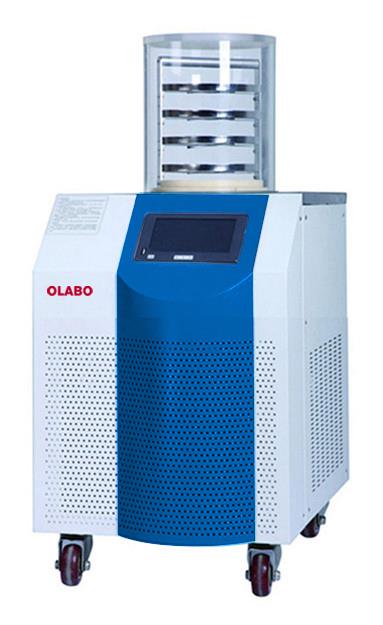

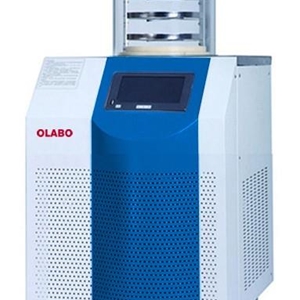

Model
OLB-FD12S
Type
Standard chamber
Freeze Drying Area
0.12 m2
Tray
4 pcs
Height Between Trays
50mm
Cold Trap Temperature
≤-60℃/-80℃
Cold Trap Capacity
9.5L
Cold Trap Size (Dr*H)
Φ215*260mm
Vacuum Degree
<10 Pa
Water Capture Capacity
4kg/24h
Tray Size (D*H)
Φ200*20mm
Freeze Drying Time
24h
Loading Capacity/Shelf (Liquid)
0.3L
Total Loading Capacity (Liquid)
1.2L
Drying Chamber Size (D*H)
Φ260*310mm
Can Load Vials Qty
Φ22mm
260
Φ16mm
480
Φ12mm
920
Refrigerant
R600a+R290+R23
Cooling System
Air cooling
Consumption
-56℃: 0.9kW,-80℃: 1.5kW
Power Supply
AC220V, 50Hz, 60Hz (single phase);
110V/220V, 60Hz (single phase, only for -56℃)
Standard Accessory

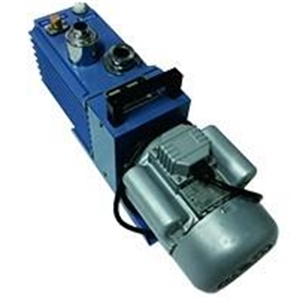

Vacuum pump 2L/S, 8m3/h (for all models),Conical-mouth flasks 500mlx8 (only for model BK-FD12P/PT)
Optional Function & Accessory
Tray heating (for all models),
Cold trap defrosting (for all models),

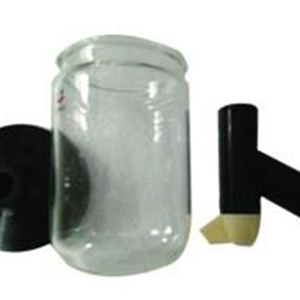

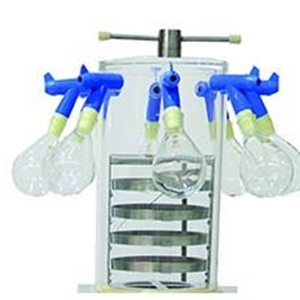

Conical-mouth flask and wide-mouth flask (for BK-FD12P/PT),
Import vacuum pump
External Size (W*D*H)
460*620*920/1370mm
Package Size (W*D*H)mm/
Main Body
590*710*1170/90kg
Gross Weight
Drying Chamber
340*340*460/12kg
Vacuum Pump
590*380*220/22kg
