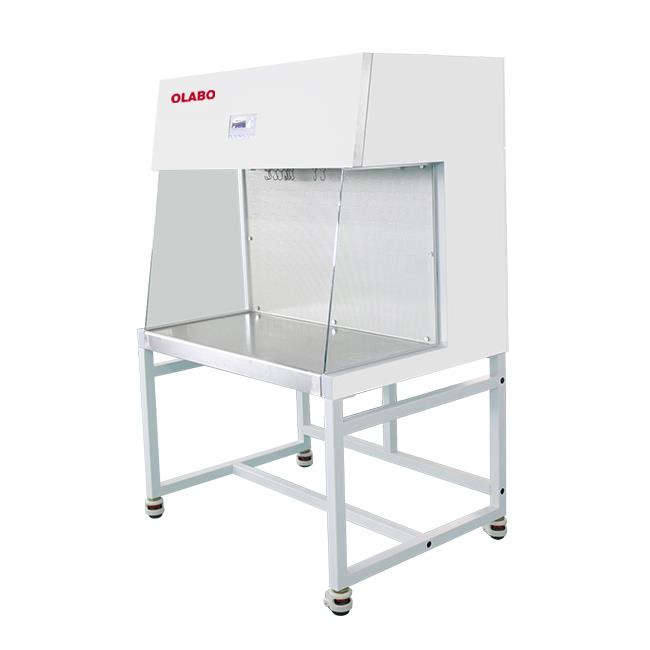

China Laboratory Horizontal Laminar Flow Cabinet for Sample Protection
Product Description
Laminar Flow Cabinet –sample protection only
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting
it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order
to prevent the infiltration of contaminated room air.
Technical Parameters
| Model | BBS-H1300 | BBS-H1800 |
| External Size(W*D*H) | 1300*825*2040mm | 1800*825*2040mm |
| Internal Size(W*D*H) | 1200*500*570mm | 1700*500*570mm |
| Work Surface Height | 750mm | |

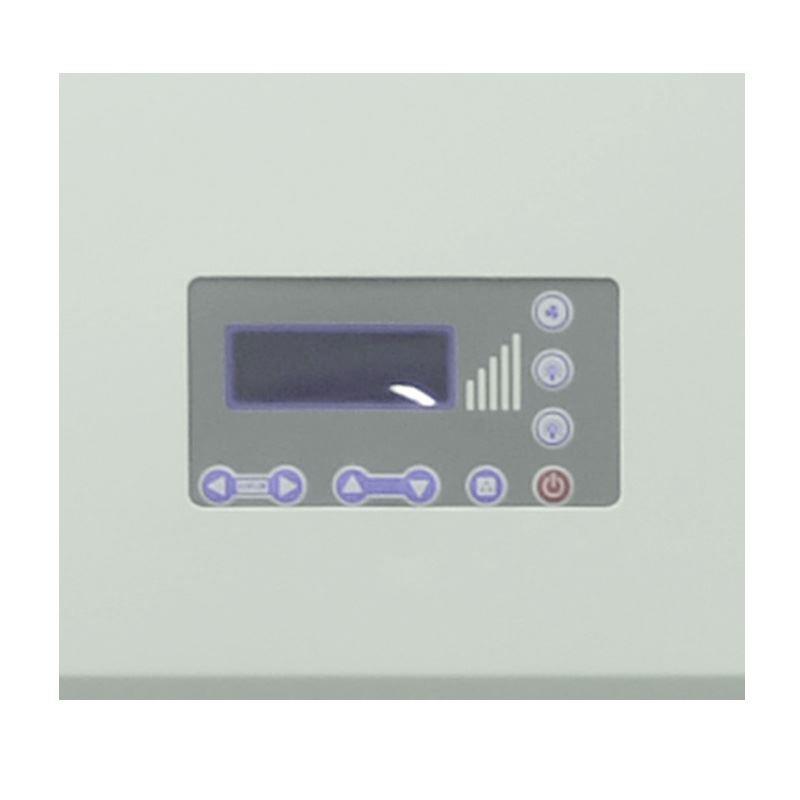

| Display | LCD Display | |
| Airflow Velocity | Average of 0.3~0.5m/s | |
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | |
| Work Table:304 stainless steel | ||
| Side and Front Window: 5mm toughened glass, anti-UV | ||
| Pre-filter | Polyester fiber, washable | |
| HEPA Filter | 99.999% efficiency at 0.3um | |
| Noise | <60dB | |
| Front Window | Motorized | |
| Max Opening | 430mm | |
| Fluorescent Lamp | 28W*1 | 28W*1 |
| UV Lamp | 30W*1 | 30W*1 |
| Emission of 253.7 nanometers | ||
| Consumption | 400W | 700W |

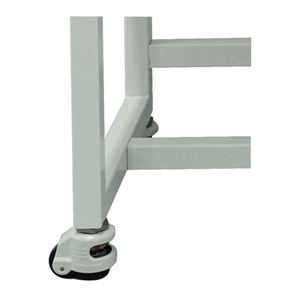

| Caster | Universal caster with leveling feet | |
| Waterproof Socket | Two, total load≤500W | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |
| Standard Accessory | Fluorescent lamp, UV lamp*2, Base stand, Gas Tap, Waterproof socket*2, | |
| Water Tap (only for OBS-H1800) | ||
| Gross Weight | 254kg | 328kg |
| Package Size(W*D*H) | 1450*1060*1650mm | 1950*1060*1600mm |
