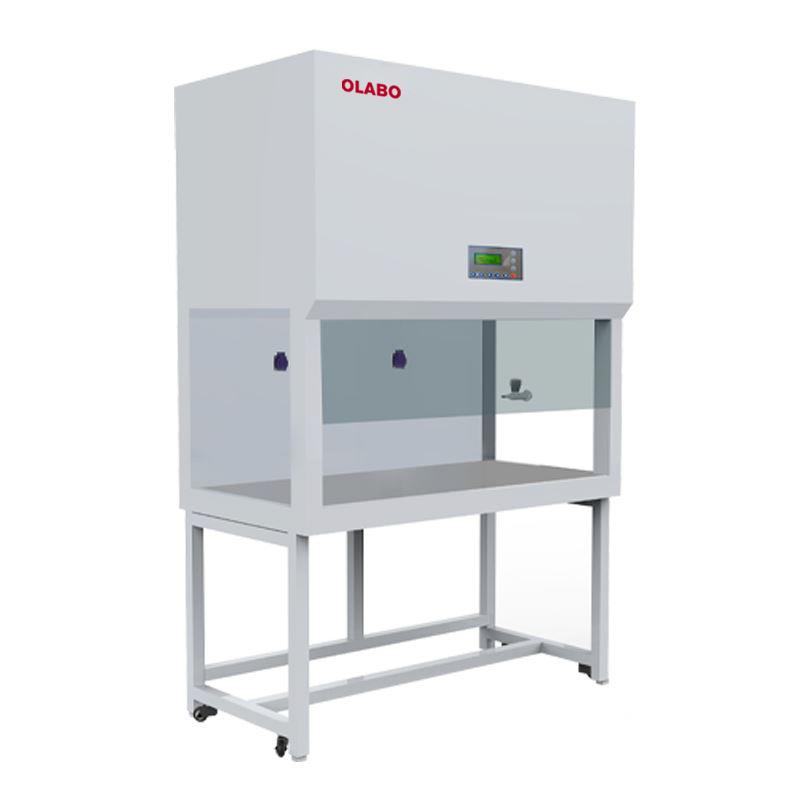

Vertical Laminar Air Flow Cabinet for PCR Laboratory
Product Description
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it
across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to
prevent the infiltration of contaminated room air.
Technical Parameters
Model
BBS-V1300
BBS-V1800
External Size(W*D*H)
1300*750*2040mm
1800*750*2040mm
Internal Size(W*D*H)
1200*645*610mm
1700*645*610mm
Work Surface Height
750mm
Display
LCD Display
Airflow Velocity
Average of 0.3~0.5m/s
Material
Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Table:304 stainless steel
Side and Front Windows:5mm toughened glass anti-UV
Pre-filter
Polyester fiber, washable
HEPA Filter
99.999% efficiency at 0.3um
Noise
<65dB
Front Window
Motorized
Max Opening
430mm
LED Lamp
12W*1
16W*1
UV Lamp
30W*1
40W*1
Emission of 253.7 nanometers
Consumption
400W
450W
Waterproof socket
Two, total load≤500W
Caster

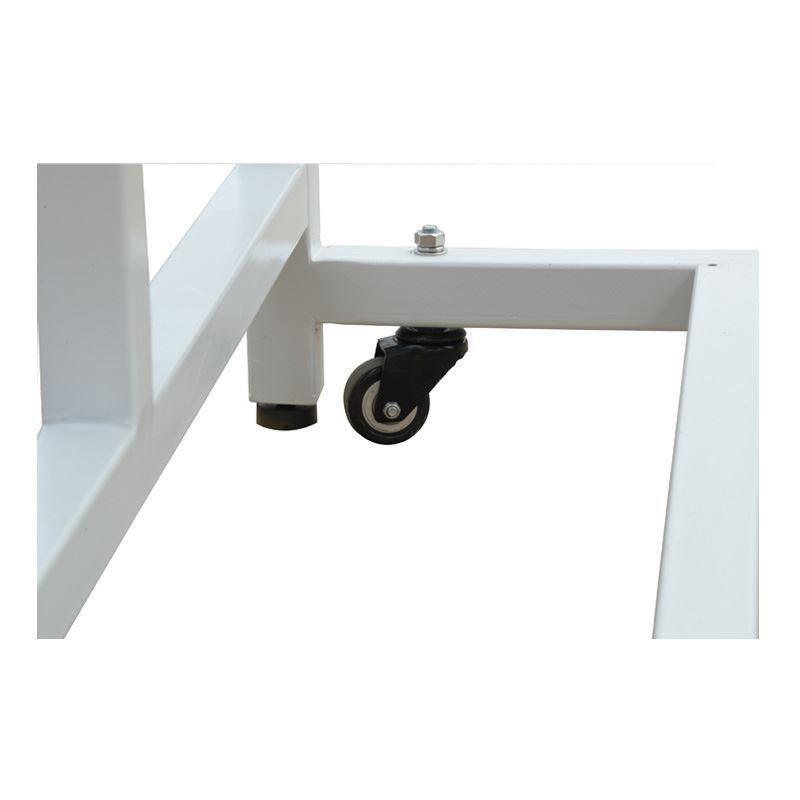

Universal caster with leveling feet
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory
LED lamp, UV lamp*2,Base stand, Gas Tap, Waterproof socket*2
OptionalAccessory
Electric height adjustable base stand
Gross Weight
228kg
306kg
Package Size(W*D*H)
1460*1070*1650mm
1960*970*1600mm
