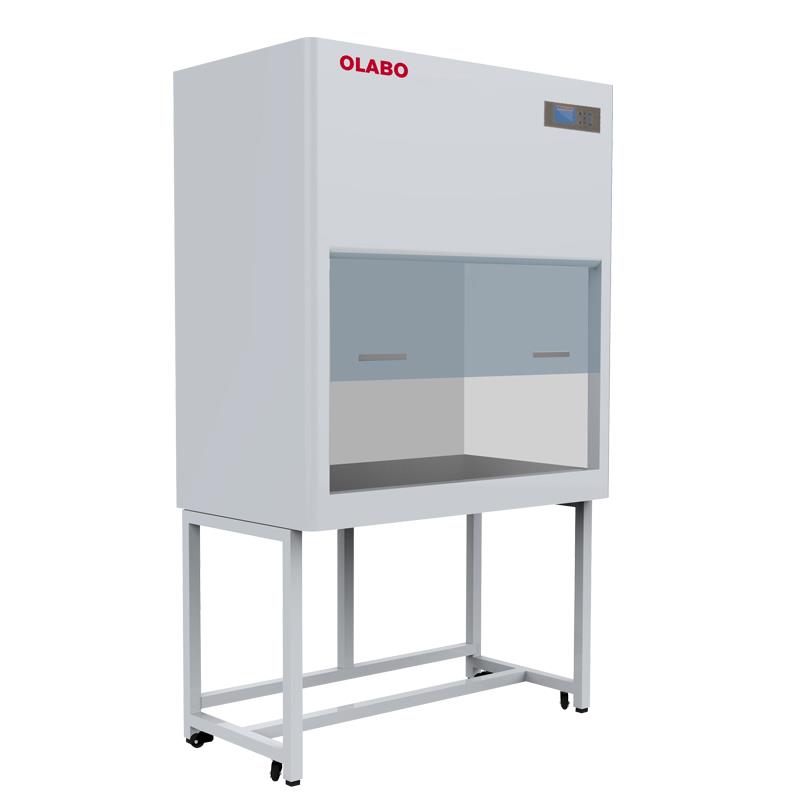

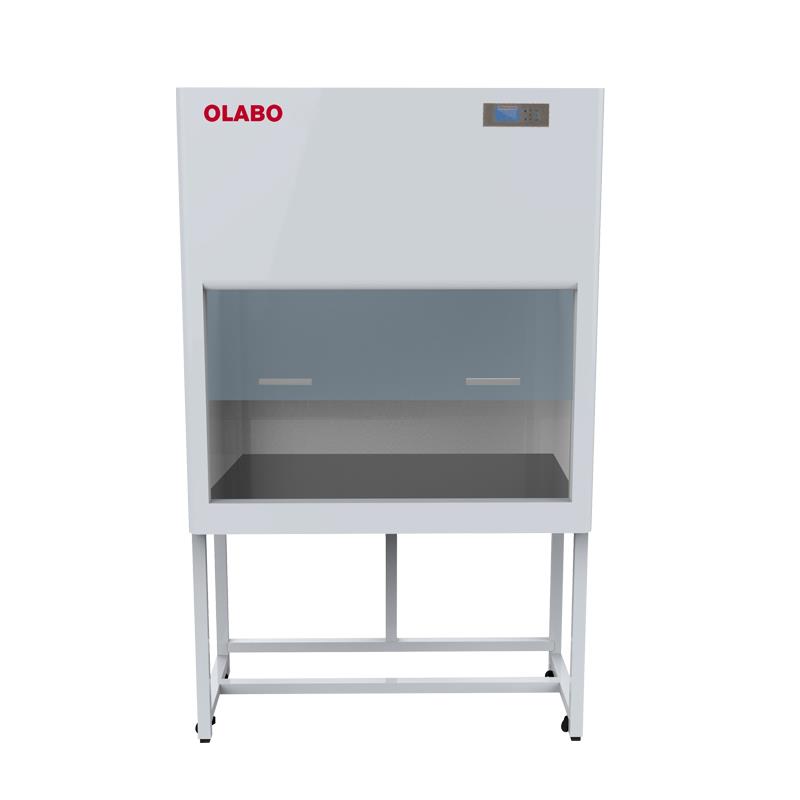

High Quality Laboratory Laminar Flow Cabinet
Product Description
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting
it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order
to prevent the infiltration of contaminated room air.
Technical parameter
| Model | BBS-V680 | BBS-V800 | BBS-DDC | BBS-SDC |
|
External Size (W*D*H), mm |
680*410*1160 | 802*650*1550 | 1040*615*1770 | 1440*615*1770 |
|
Internal Size (W*D*H), mm |
630*375*615 | 800*530*540 | 940*540*545 | 1340*540*545 |
|
Work Surface Height |
/ | 660mm | 750mm | 750mm |
| Display | LED Display | |||
| Airflow Velocity | Average of 0.3~0.5m/s, air speed adjustable. | |||
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | |||
| Work Table: 304 stainless steel | ||||
| Pre-filter | Polyester fiber, washable | |||
| HEPA Filter | 99.999% efficiency at 0.3um | |||
| Noise | <60dB | |||
| Front Window | / | Manual,5mm toughened glass, anti-UV | ||
| Max Opening | / | 490mm | 310mm | 310mm |
| Illuminating Lamp | Fluorescent Lamp | LED Lamp | LED Lamp | LED Lamp |
| 14W*1 | 8W*1 | 12W*1 | 16W*1 | |
| UV Lamp | 15W*1 | 20W*1 | 18W*1 | 30W*1 |
| Emission of 253.7 nanometers | ||||
| Consumption | 160W | 350W | 350W | 600W |
| Standard Accessory | Fluorescent lamp, UV lamp*2 | LED Lamp | LED Lamp | LED Lamp |
| Water & gas tap | UV lamp*2 | UV lamp*2 | UV lamp*2 | |
| Base stand | Base stand | Base stand | ||
| Optional Accessory | / | Electric height adjustable bass stand | ||

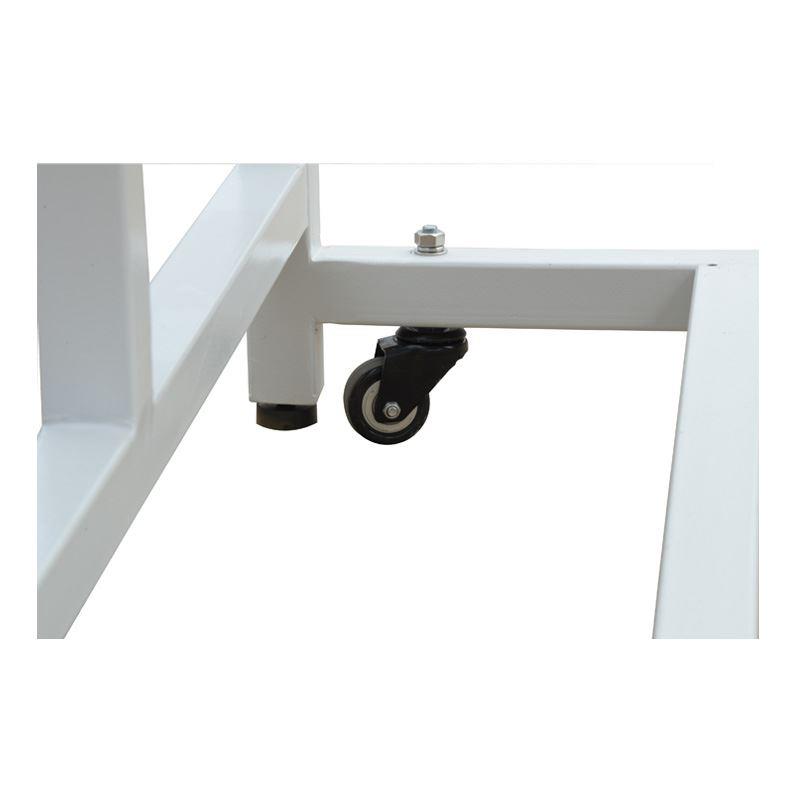

| Caster | / | Universal wheel with leveling feet | ||
| Power Supply | AC 220V±10%, 50/60 Hz; 110V±10%, 60HZ | |||
| Gross Weight | 50kg | 116kg | 131kg | 174kg |
| Package Size (W*D*H)mm | 840*560*1380 | 960*800*1800 | 1200*850*1360 |
1600*850*1360 |
